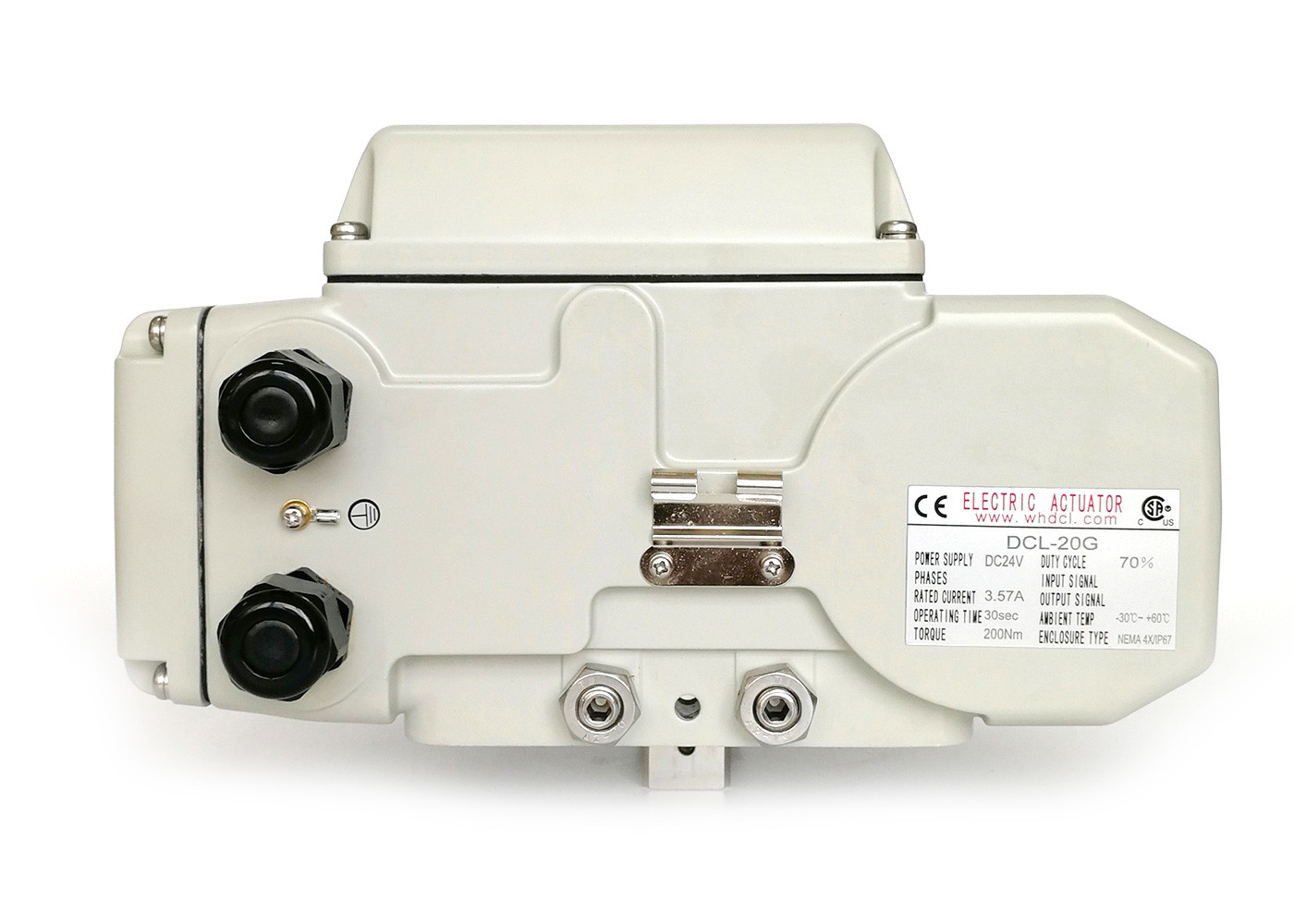

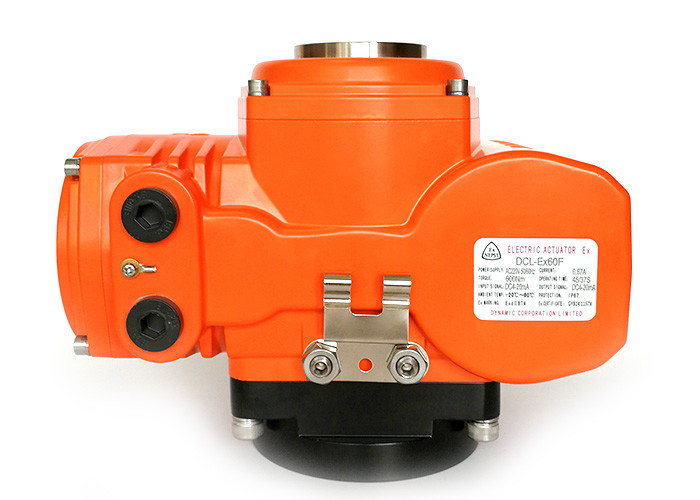

Smart Electric Positioning 200Nm DC Rotary Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-G Series
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Power Supply 24VDC / 12VDC Optional Total Weight 1.2KG To 10KG
Motor Power 13W To 70W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP67 NEMA4/4X
High Light

200Nm DC rotary actuator

,

DC24v rotary actuator

,

dn80 Ball Valve actuator

Leave a Message
Product Description

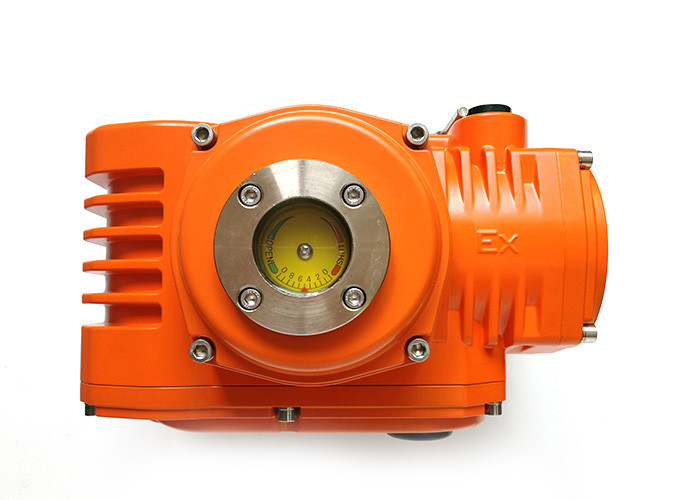

Smart electric positioning DC rotary actuator self-adoptive to jamming phenomenon



Features

  • Quarter turn standard, turning angle smaller than 360° optional
  • Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
  • Watertight housing cover with IP67 grade for indoor and outdoor use
  • Two more limit switches to confirm valve position
  • Very compact size for 360° installation, with water proof connector and cable optional
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Standard ISO 5211 multi flange valve mounting
  • Manual operation with handle
  • Over torque protection/anti-condensation heater/local emergency power off button optional
  • CE marked/RoHS 3 tested/CSA listed



Description

DCL series anti-condensation electric actuator are widely used in high temperature and humidity environment. Sometimes, opening cover to do wiring and adjustment is unavoidable for customer. Thermostatically controlled heater is necessary for humid environment with big day/night temperature difference.

Patented one-way breathing apparatus can avoid repeated condensation after heater powered off, since it only allows water molecules go from inside to outside of actuator while reverse movement is not possible. Thus, actuator is perfectly protected from damage of condensation.



Specification



Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg



Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator
