Electric Actuated Butterfly Valve 360° 24v Quarter Turn Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL all electric actuator
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 18Nm To 2500Nm Standard Time 15S To 75S
Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC Installation Angle 360°
Protection Grade IP67 NEMA4/4X Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Motor Power 6W To 140W
High Light

24v quarter turn actuator

,

600Nm Butterfly Valve Actuator

,

ip67 fail safe valve actuator

Leave a Message
Product Description

Self-locking fail safe electric actuator with over torque protection / CSA listed



Description

DCL common series electric actuator are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms. On receipt of a continuous power signal, the motor runs one direction and via an all metal gear box with last stage worm gear train rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.



Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm   10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm   19.5Kg
DCL-250 75S/2500Nm   20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm   3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg





Features

  • Quarter turn operation with mechanical limits
  • Over torque protection by torque test function of smart full potted controller
  • Integral design of Motor/control box/housing to make whole actuator compact
  • Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
  • Two auxiliary limit switches to confirm valve position
  • Visual valve position indicator/flat or convex
  • Manual override/handwheel optional
  • Thermal overload protection heavy duty motor with PTC overheating protector
  • Self-locking all metal gear drive, no additional brake required
  • CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

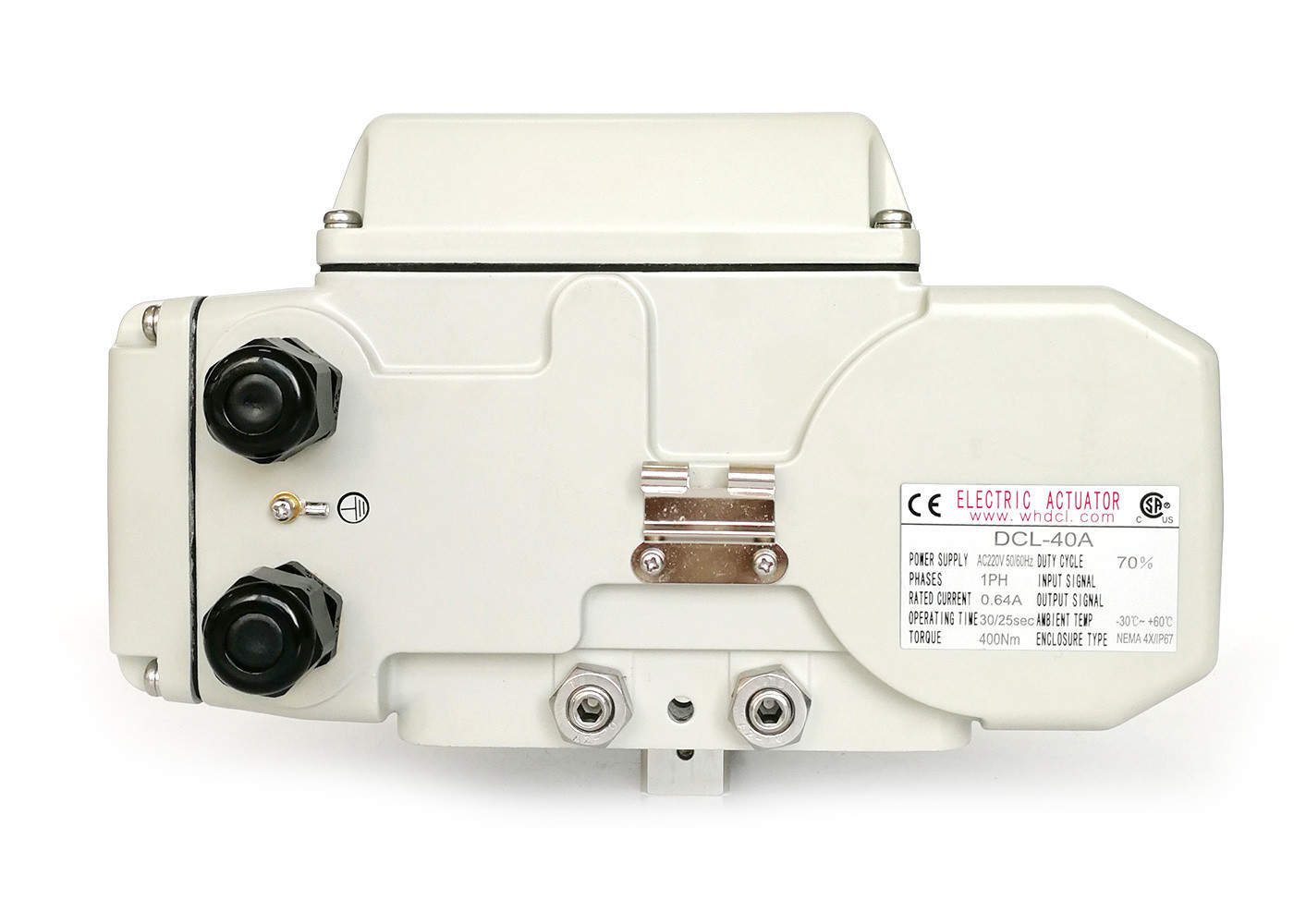

Weather Proof 360° CSA Quarter Turn Electric Actuator

Weather Proof 360° CSA Quarter Turn Electric Actuator
