Middle Position IECEx 30S/100Nm Explosion Proof Electric Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67/ATEX/IECEx/UL
Model Number DCL-Ex05B/10B/20B/40B/60B
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Torque 50Nm To 600Nm Standard Time 20s To 45s
Total Weight 3kg To 10kg Power Supply 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power 6W To 90W Ambient Temperature -25℃~+55℃ / -13°F~+131°F
Installation Angle 360° Protection Grade IP68 NEMA 4X
High Light

600Nm ex proof actuator

,

IP68 waterproof valve actuator

,

24V Explosion Proof Electric Actuator

Leave a Message
Product Description

DCL-Ex05 dimension and parameters.pdf

DCL-Ex10 Ex20 dimension and parameters.pdf

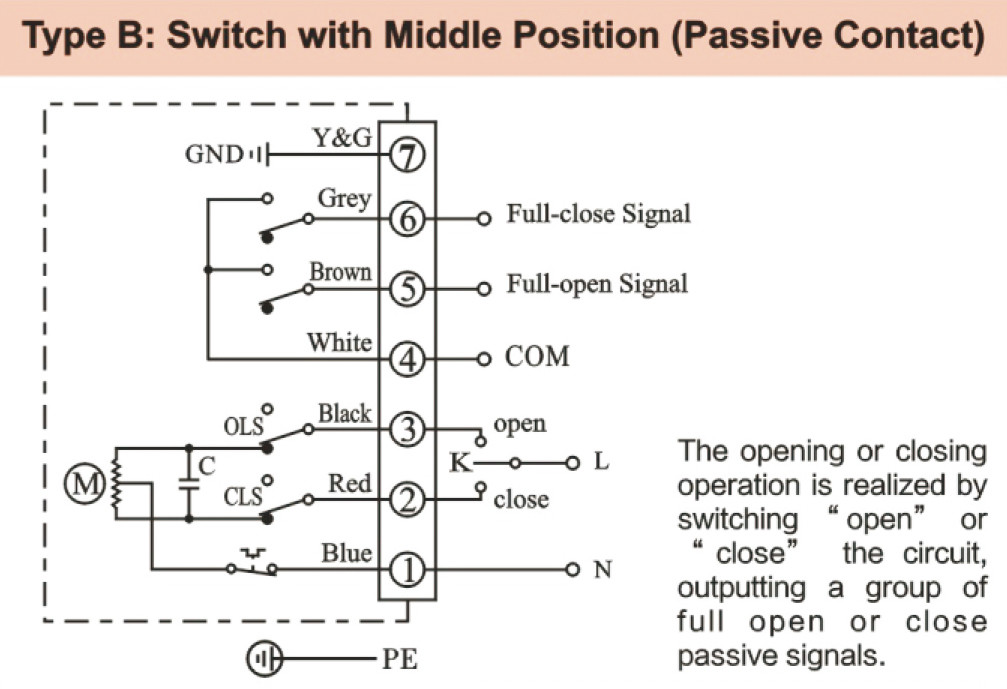

Explosion proof electric actuator with middle position / passive contact





Features

  • Less than 100° operation with mechanical limits
  • Middle position can be added per required angle
  • Two auxiliary micro switches to feedback full open and full close position
  • Self-locking at any position when lose power, no additional brake needed
  • Fully enclosed squirrel-cage asynchronous induction motor with heavy duty
  • Rugged IP68 and type 4X aluminum alloy enclosure with powder coated
  • All steel alloy spur gear and bronze alloy worm gear with permanent lubricated
  • Tempered glass covered visual position indicator
  • Standard ISO5211 multi flange mounting



Description

DCL explosion proof electric actuators are widely used for chemical, power plant, winery, oil & gas and petroleum etc. Actuator uses cylinder stop type flameproof surface with very high precise machining. The connection part between body and covers are complied to ATEX, IECEx, UL and CSA standard required length and gap. ExdIICT4 grade for ATEX, IECEx and Zone system, Group C, D T4 for Division system used in USA.

Middle position is optional for that valve need to be stopped in 3 specific positions. Two dry contact feedback for full open and full close position. Actuator can be installed 360° any angle on the pipe or other devices. Valve stays at last known position when actuator’s power lose. Dehumidify heater is optional to protect actuator against condensation.





Specification:

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600
