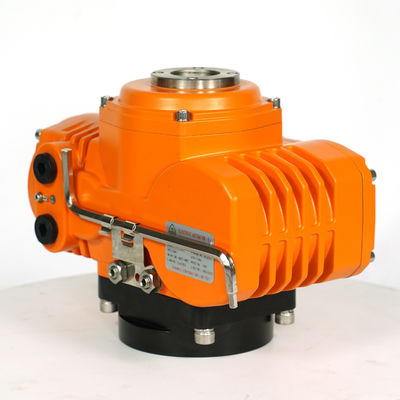

Compact Motorized 200Nm ISO5211 Explosion Proof Electric Actuator

  • Compact Motorized 200Nm ISO5211 Explosion Proof Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-Ex20
Minimum Order Quantity 1pc
Price USD300-500/PC
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Class IP68 Standard Time/Torque 30S/200Nm
Material Of Seal Surface Soft Sealed Medium Gas/Oil/Water/Other
Explosive-proof Grade ExdII CT4/ExdⅢCT130 Rated Current 0.19A~3.12A
High Light

ISO5211 explosion proof actuator

,

Motorized Explosion Proof Electric Actuator

,

IP67 waterproof valve Actuator
Leave a Message
Product Description

Compact structure motorized valve actuator with anti-explosion certificate and ISO5211 direct installation type



Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for electric actuator, electric valve and its automatic control system. The main leading product, DCL series electric actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.



Specification:



Type DCL-Ex20
　 DC24V AC110V AC380V AC220V
Motor Power 25W 40W 30W 40W
Rated Current 3.12A 0.63A 0.19A 0.35A
Standard Time/Torque 60S/200Nm 30S/200Nm
Optional Time/Torque 30S/100Nm 15S/100Nm 15S/100Nm 60S/200Nm
Turning Angle 0～900 Adjustable
Available Control Circuit Type of A,B,C,D,E,F,G,H,
Total Weight 5.5kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class DC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class IP67
Expiosive-proof grade ExⅡCT4Gb
Installation Angle 3600 at any angle
Electric Interface

2-M20×1.5explosion-proof plug,clients should install corresponding

explosion-proof cable connector when using according to the cable selected.
Ambient Temperature ’-20～+60℃
Optional Function Over-torque Protector/Heater



Application


DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.



Product specification

Power 24VDC 110VAC 380VAC 220VAC
Motor power 25W/40W/30W/40W
Rated Current 3.12A/0.63A/0.19A/0.35A
Standard time/Torque 60s/20Nm(for DC24V) 30s/200Nm
Optional Time/Torque 30s/100Nm 15s/100Nm 60s/200Nm
Turning Angle 0~90° Adjustable
Avaliable Control Circuit Types of A,B,C,D,E,F,G,H
Total weight 5.5kg
Protection Class IP67
Explosive-proof grade Exd II CT4Gb
Installation angle 360° at any angle
Electric interface 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature -20℃~+60℃
Optional Fuction Over-torque protector/ Heater for eliminating moisture
