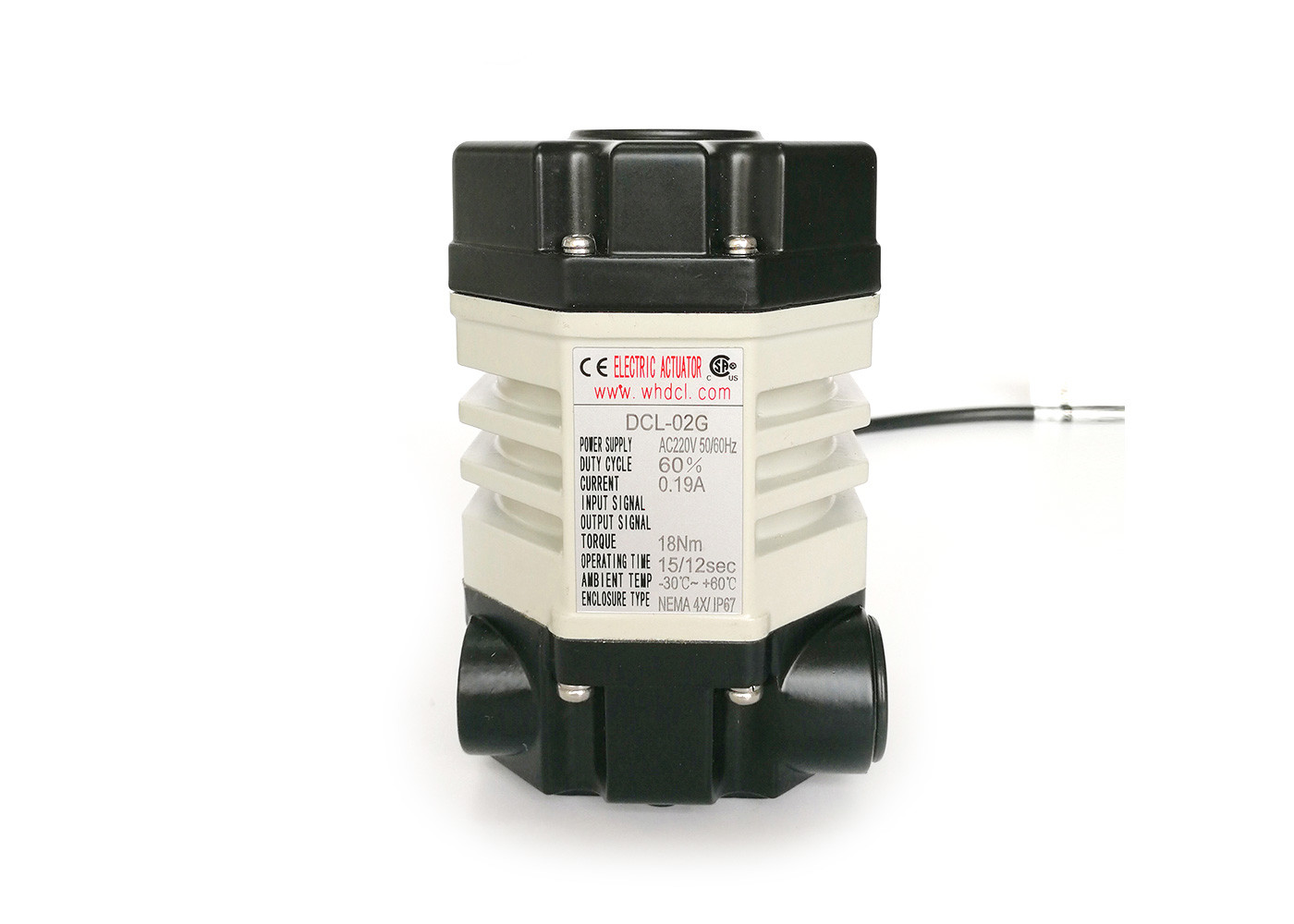

IP68 DC Rotary Actuator

Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-02G
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name DC Rotary Actuator Standard Time/Torque 15S/18Nm
Feature Very Low Temperature Rise Protection Grade IP67 Waterproof
Optional Time/Torque 7S/9Nm 60S/18Nm Total Weight 1.2KG
Power Supply 24VDC / 12VDC Optional Motor Power 8W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
Type Motor With Permanent Rotor
High Light

IP68 DC rotary actuator

,

waterproof DC rotary actuator

,

18Nm DC Rotary Actuator

Leave a Message
Product Description

DC rotary actuator / motor with permanent rotor / very low temperature rise



Features

  • Quarter turn standard, turning angle smaller than 360° optional
  • Torque can be precisely setting within a certain range
  • Heavy duty DC brush motor with lower temperature rise, longer life, provide high start torque and very small inertia force
  • IP 68 watertight robust aluminum alloy enclosure, protection against dust and water
  • Torque test control and over torque protection by current
  • Two more limit switches to confirm valve position
  • Self-locking when power off
  • Strong gear train with soft nitriding metal gears
  • Standard ISO5211 multi-flange installation
  • CE marked/RoHS 3 tested/CSA listed



Specification:


Name: DC Rotary Actuator
Feature: Very Low Temperature Rise
Optional Time/Torque: 7S/9Nm 60S/18Nm
Power Supply: 24VDC / 12VDC Optional
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Type: Motor With Permanent Rotor
Standard Time/Torque: 15S/18Nm
Protection Grade: IP67 Waterproof
Total Weight: 1.2KG
Motor Power: 8W
Installation Angle: 360°





Description



DCL-02G is widely used in high security industry sites with safety power 24VDC or 12VDC, that can guarantee field workers will not get the risk of high voltage electric shock. The rare earth material magnet in motor has much stronger magnetism than normal ferrite magnet, which can provide higher torque in smaller volume. Moreover, this motor’s robustness is perfect to avoid the commonly seen problems of most DC motors, such as speed is lower when load is higher, or speed is higher when load is lower. Thus, actuator can operate in a smooth speed when load vibration and the temperature rise is very low.

Actuators have been rigorous tested by CSA and certified per UL and CSA standard. In chemical and food & beverage industry, the fluid needs to be controlled very fine, so the actuator start frequency is very high. 1200 times/hour can reach world leading level and can meet requirements of above industries.



Performance Parameters
Type DCL-02 DCL-MZZ(Multiple turns)
Power DC24V AC24V AC110V AC220V DC24V
Motor Power 8W 6W 6W 6W 20W
Rated Current 0.7A 1.3A 0.3A 0.15A 1.1A
Standard Time/Torque 15S/18Nm 18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0900 3r/min
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC 100MΩ/250VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute 500VAC 1minute
Protection Class IP67
Installation Angle 3600 at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25+55
Fuse 2A 3A 1A 1A 2A
